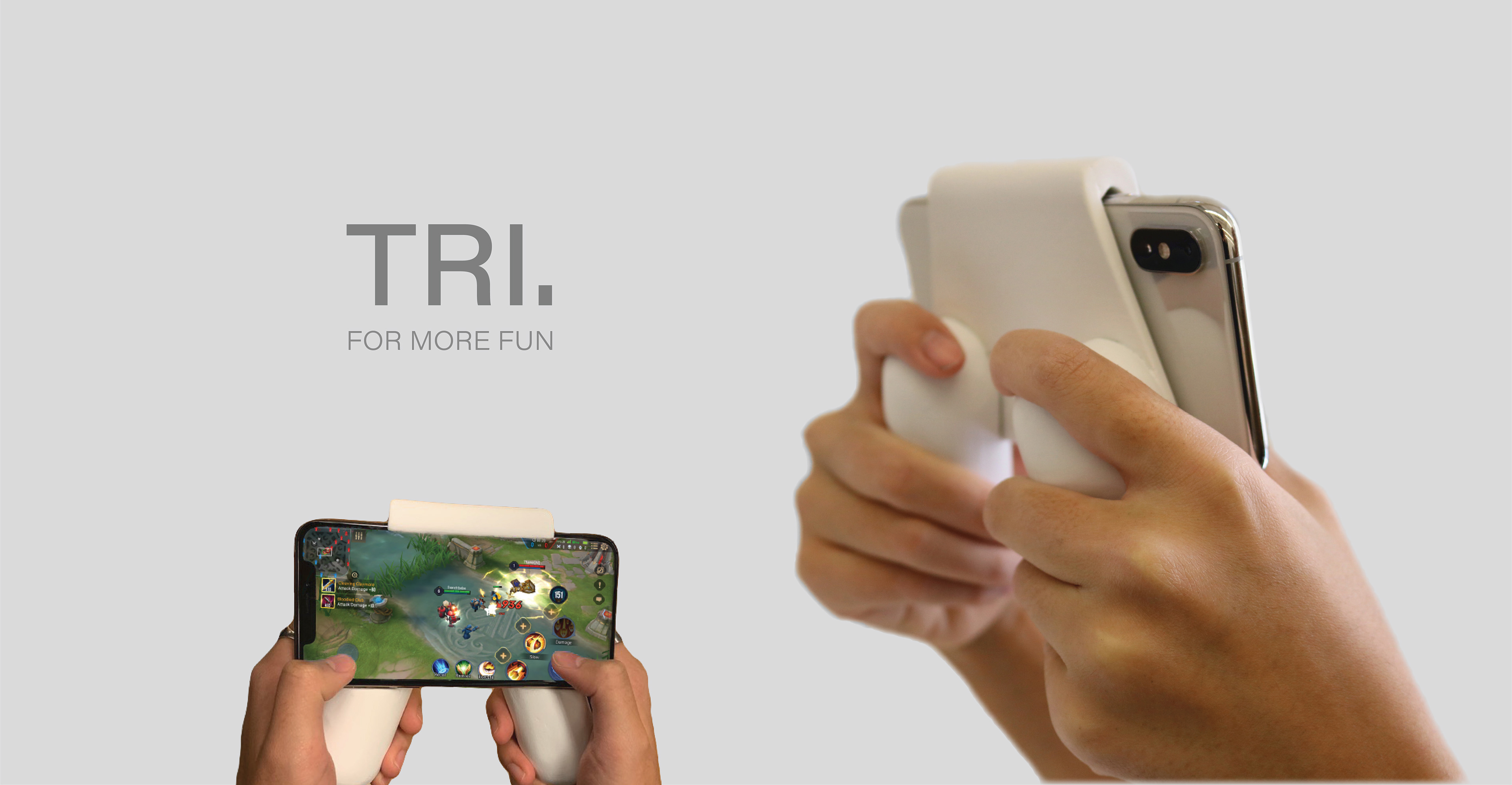

TRI.

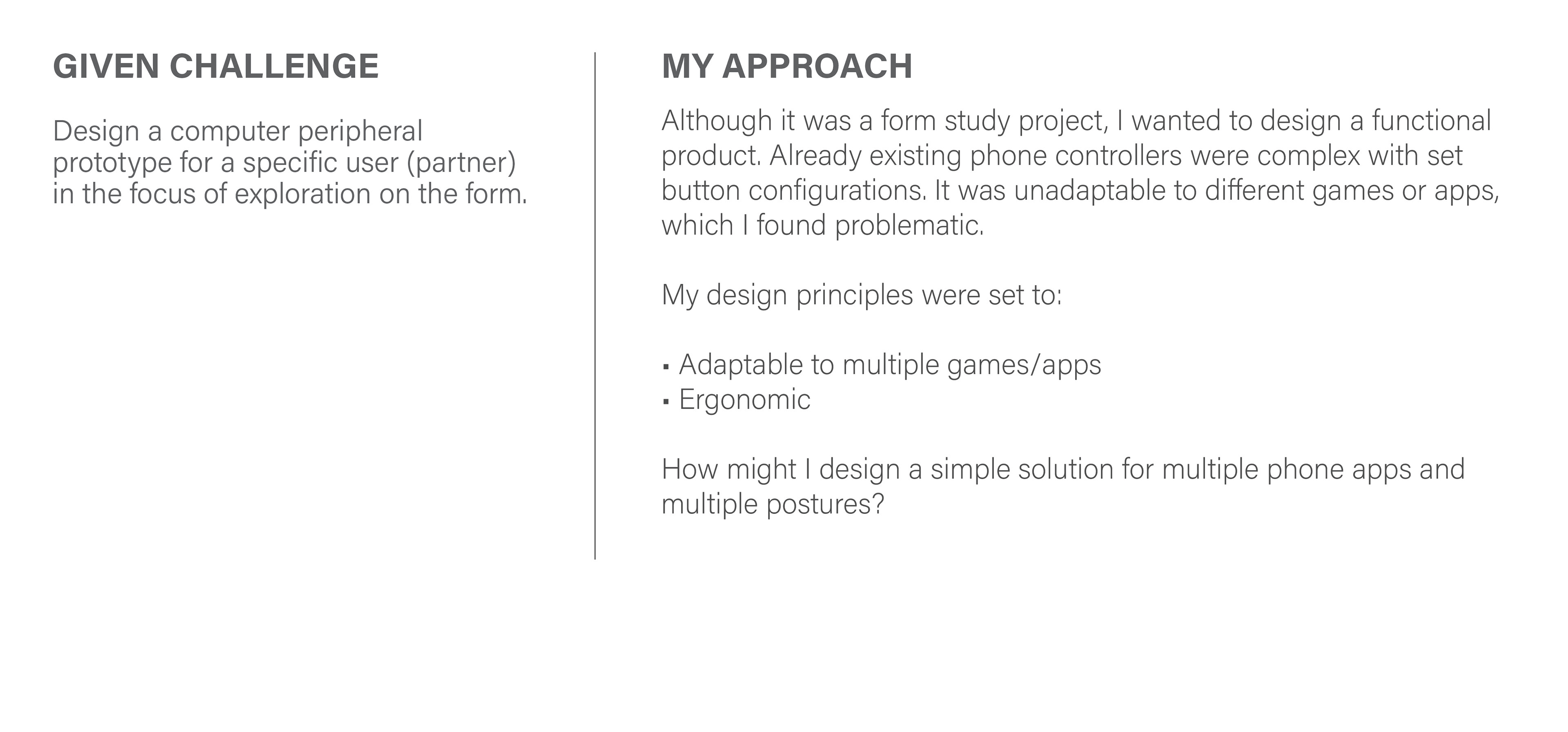

A SIMPLE SOLUTION FOR PHONE GAMERS
DESIGNING FOR A PARTNER.
MOODBOARD & PERSONAL CONTEXT & ERGONOMICS
Creating a mood board to bring the holistic view of the desired style and form of my user.
Observational studies on user's context to understand the environment around product.
Measurements specifically around the user and phone game.
IDEATION

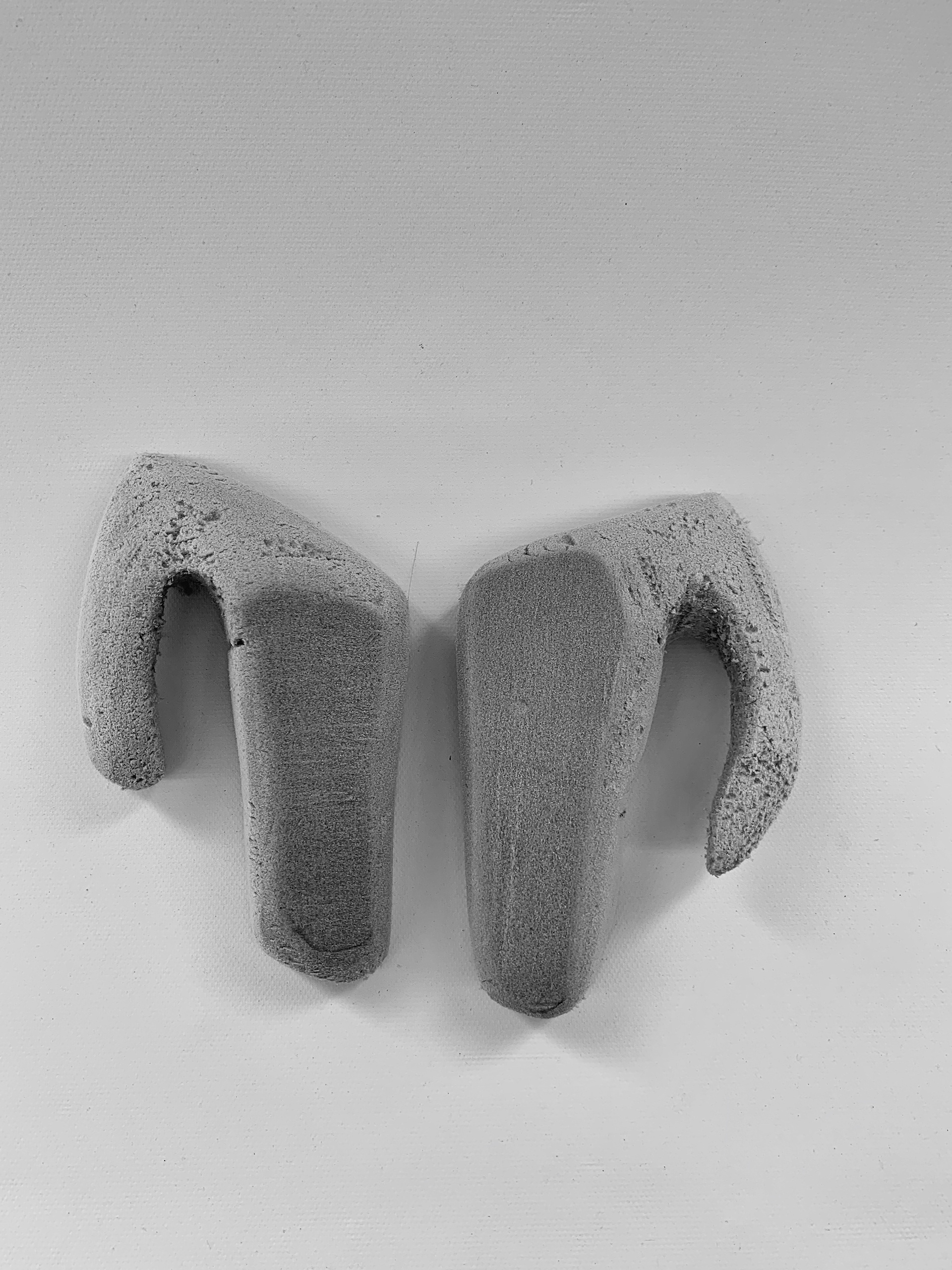

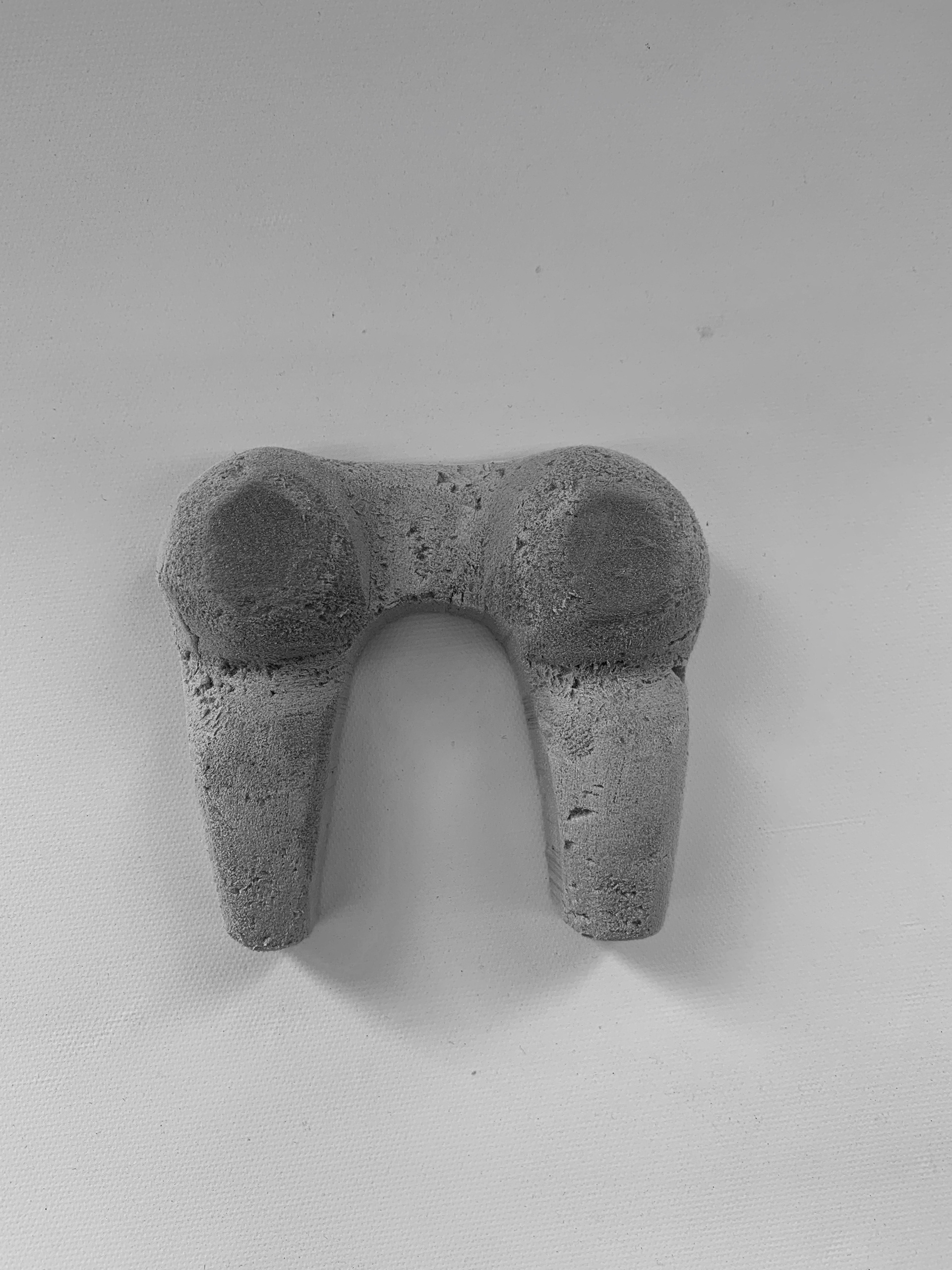

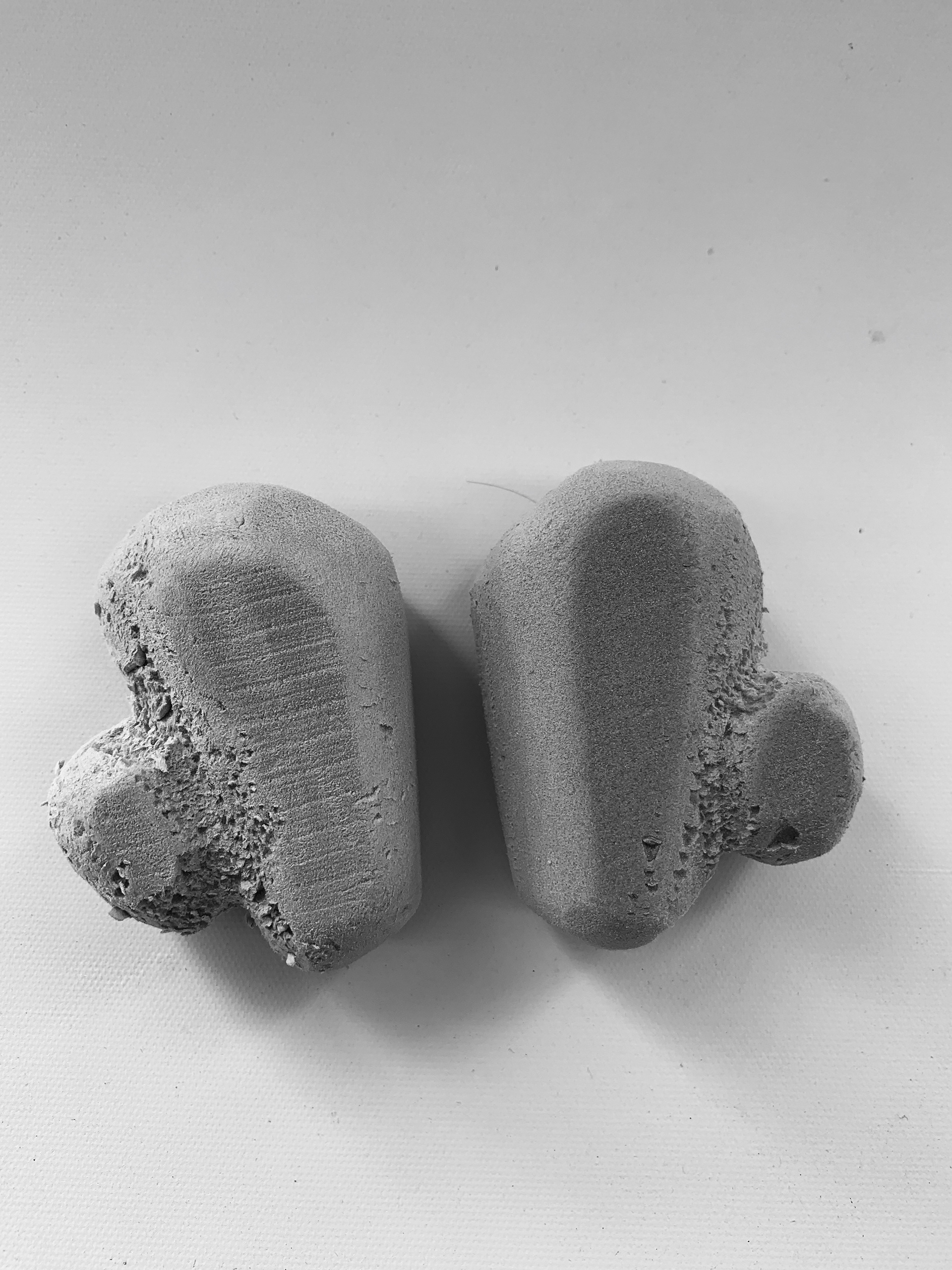

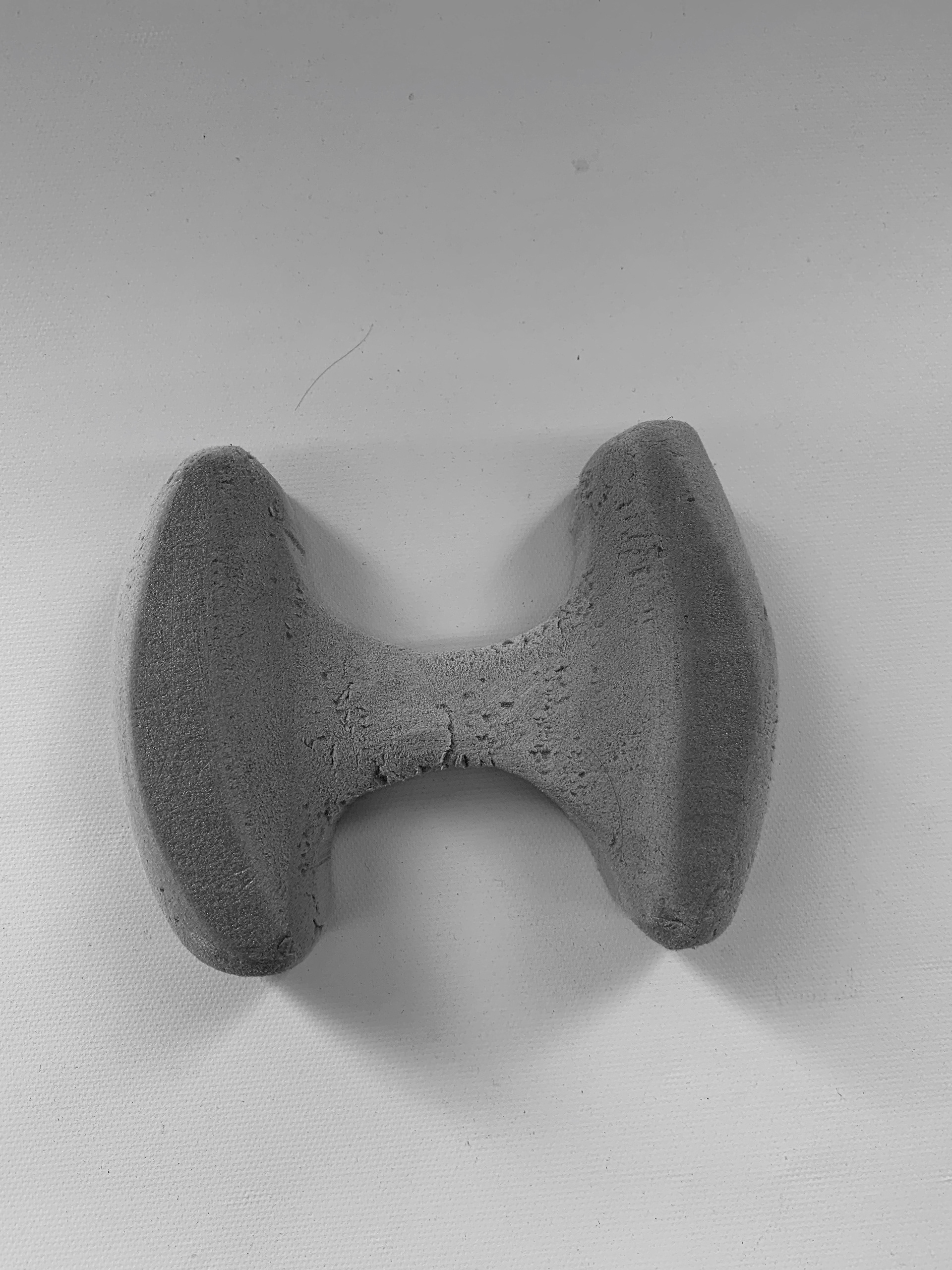

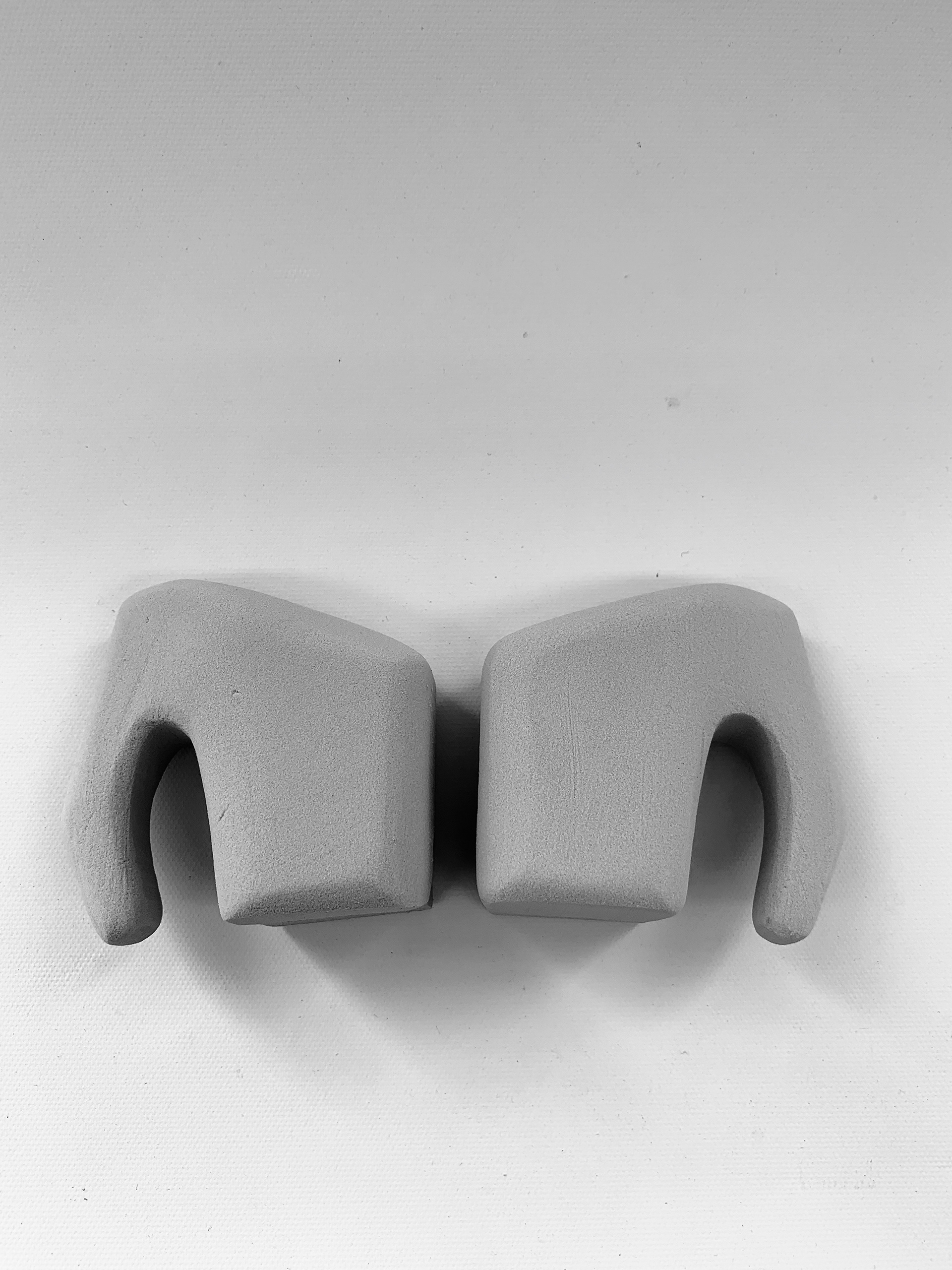

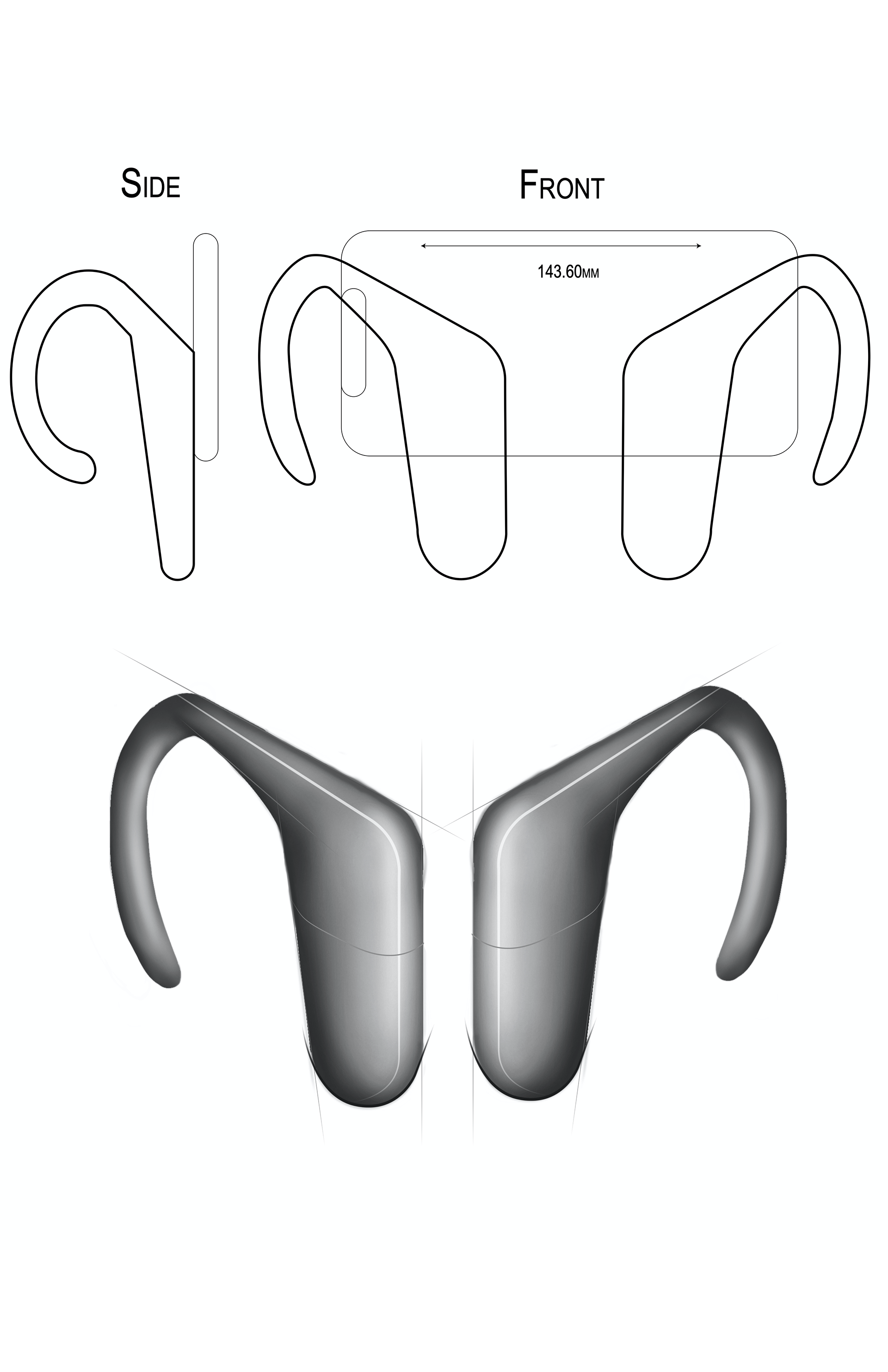

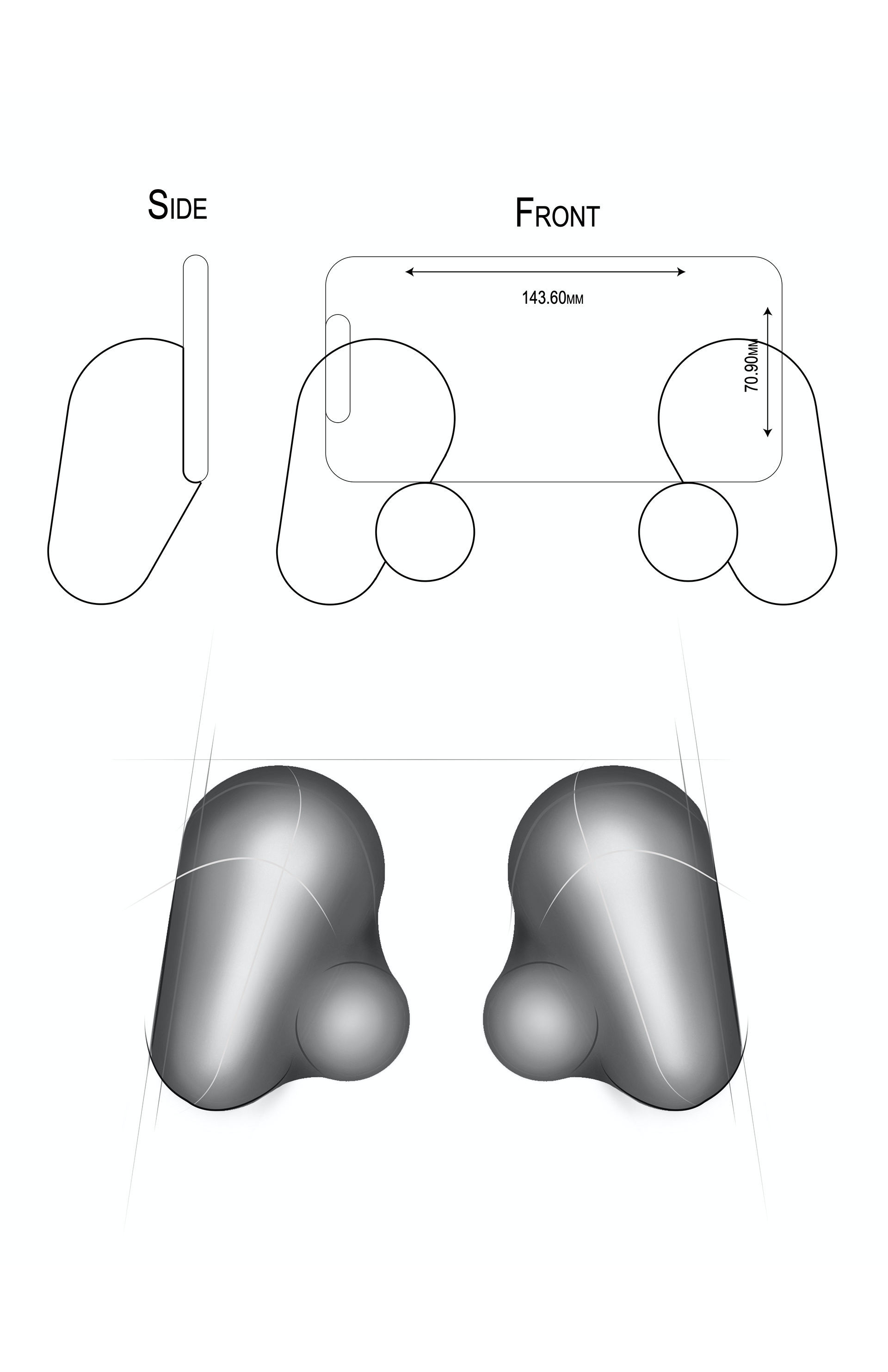

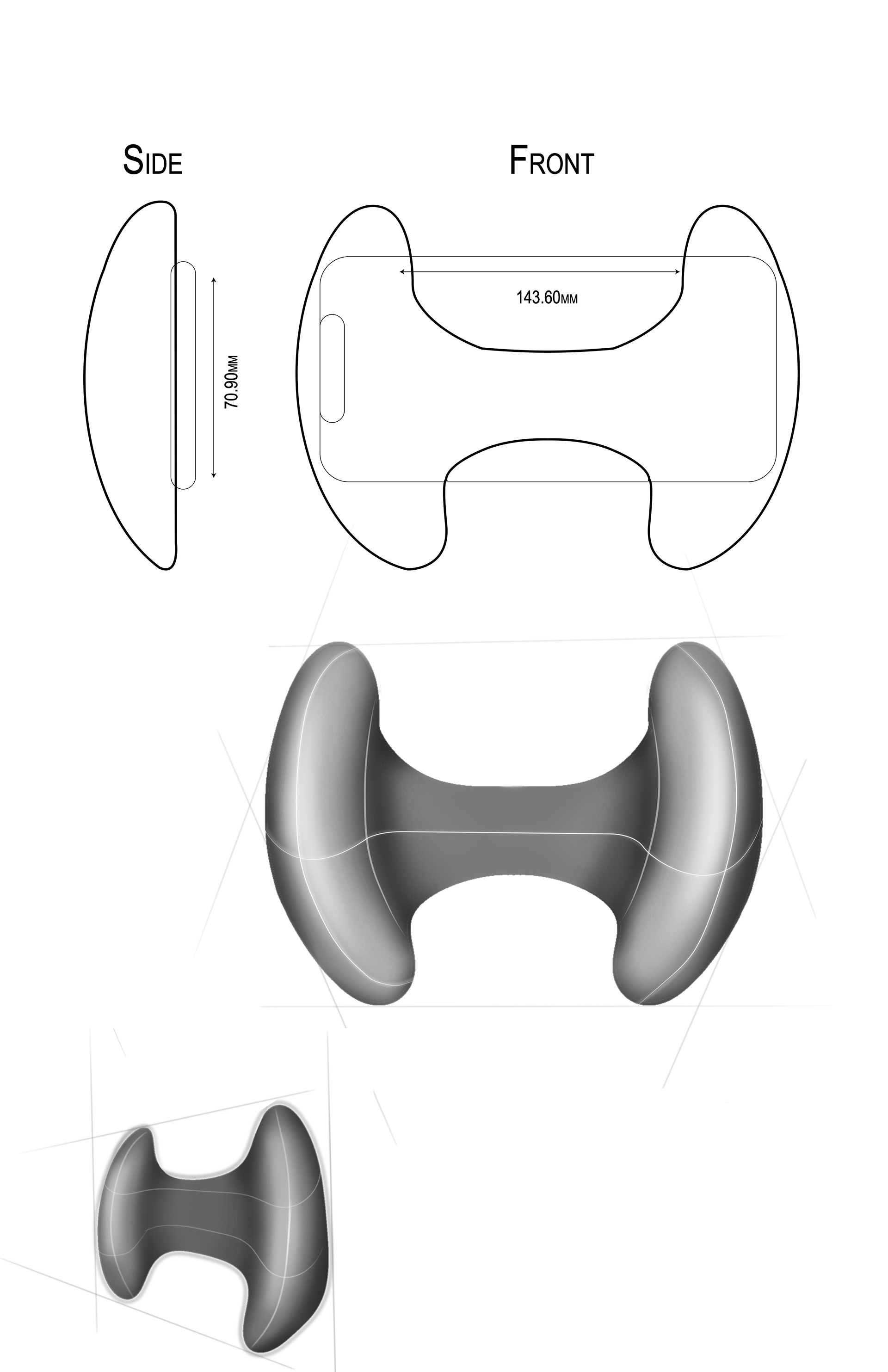

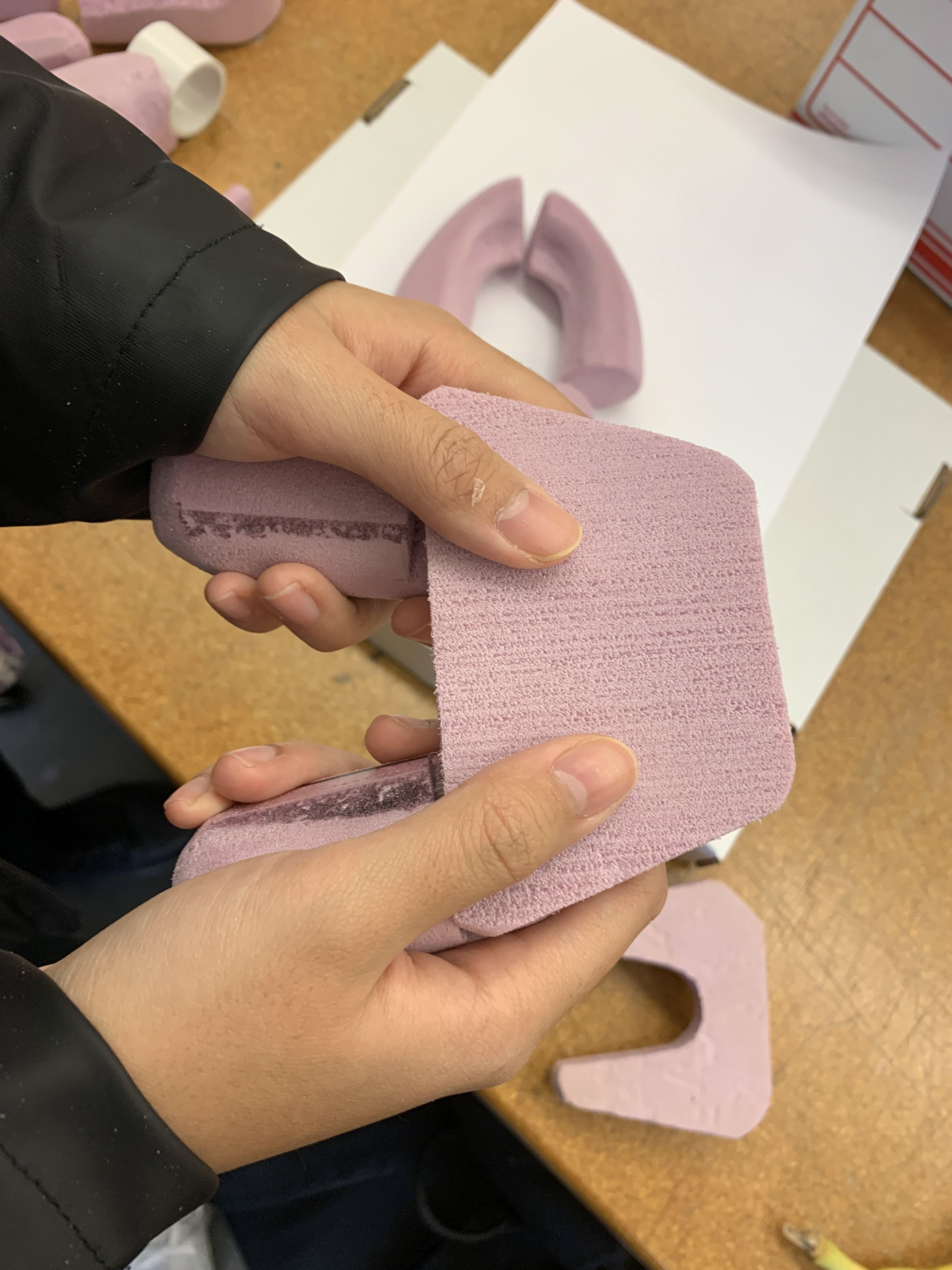

IDEATION SKETCHES & PROTOTYPES _ SIMPLE & GEOMETRIC FORMS
7 Refined ideas, render sketches, and prototypes.
ADAPTABLE
After communicating with my user, I decided to created a product that excludes buttons, like other controllers on the market, in order to widen the usage for other possible apps on a phone. It also gave full attention to the form of the product and was differentiated by keeping the simplicity in technicality but may function for many purposes.
DOWNSELECTION
7 PROTOTYPES → 3 PROTOTYPE / REFINED PROTOTYPES → 1 REFINED PROTOTYPE → FINAL

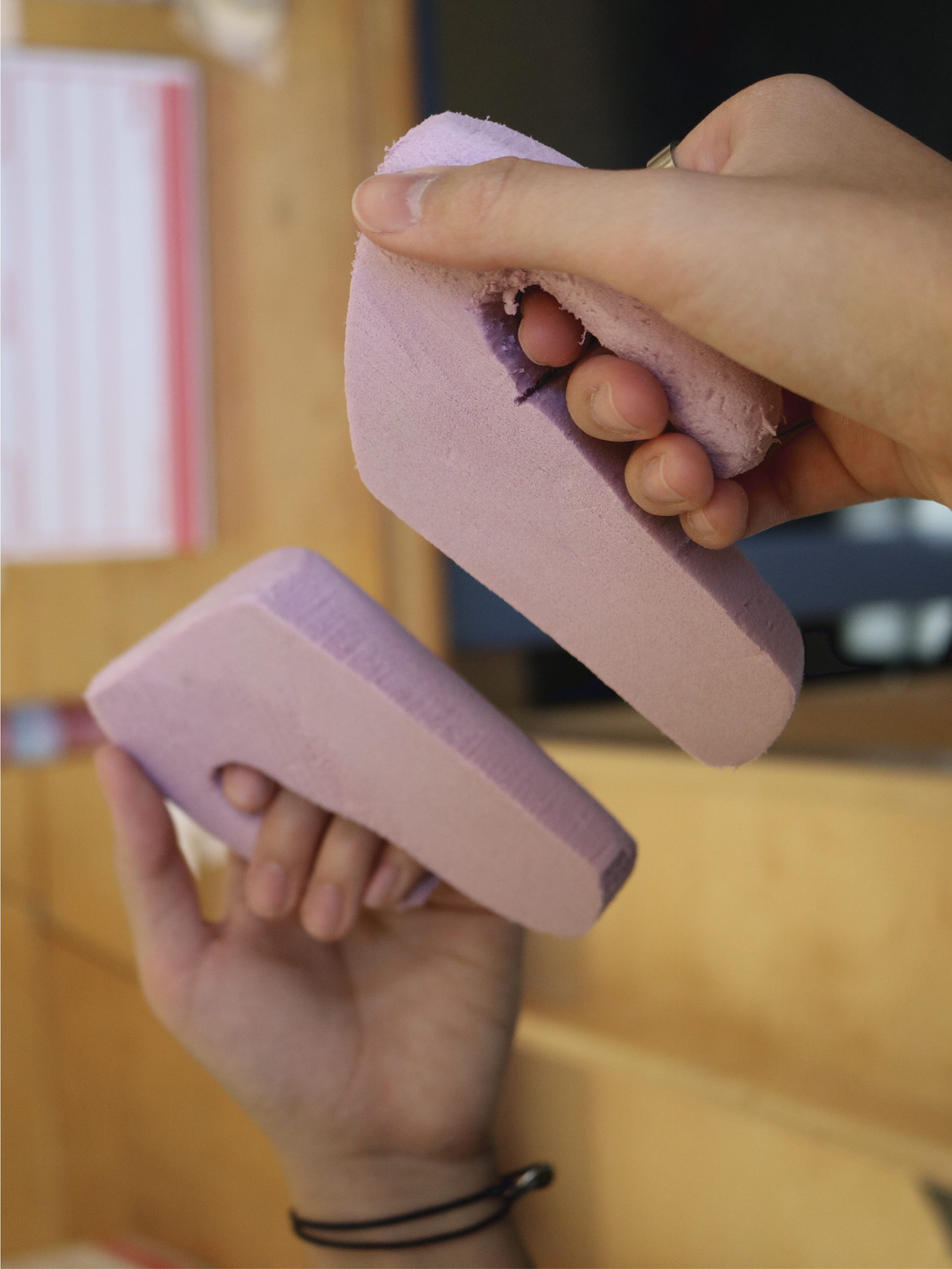

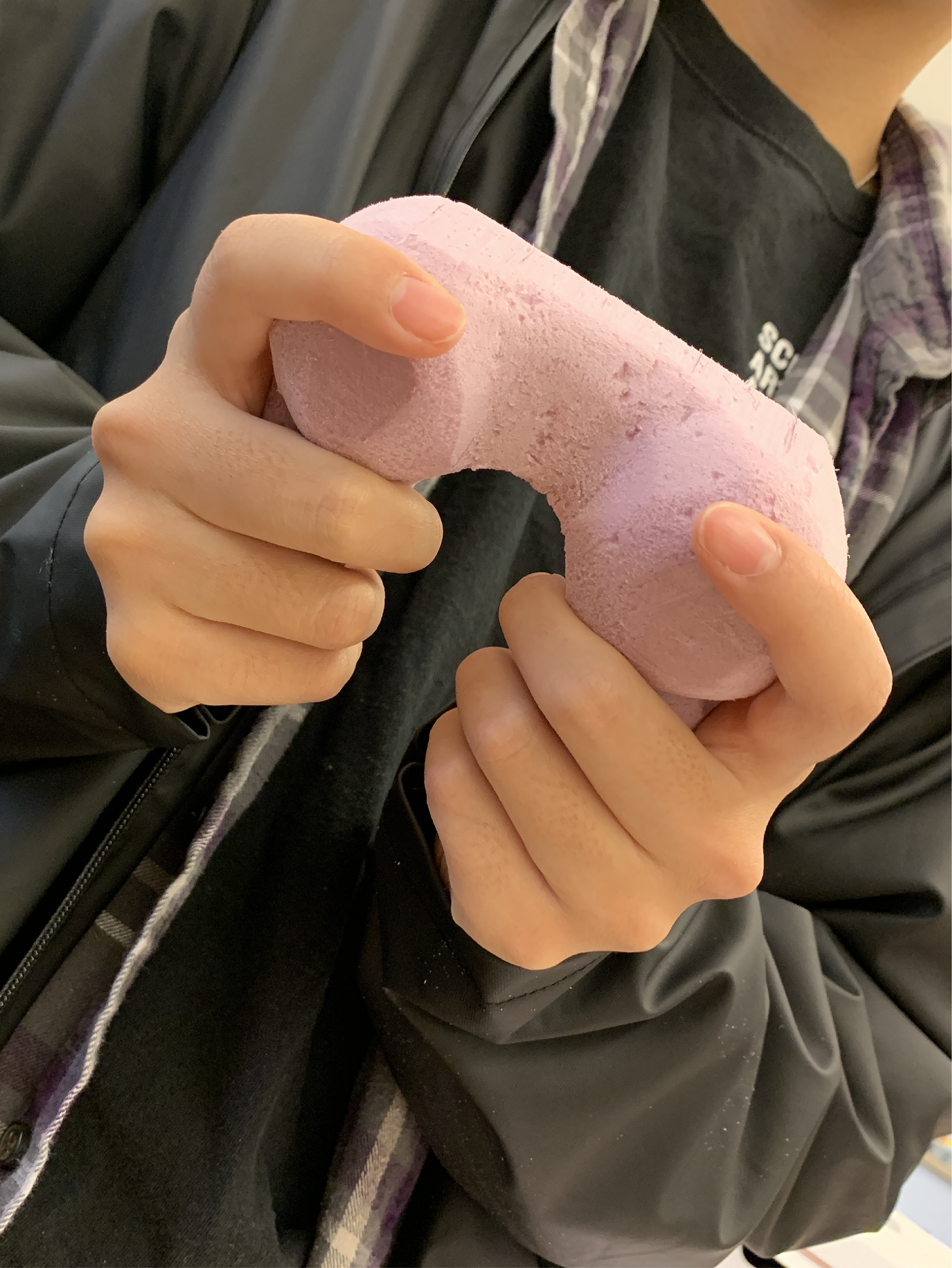

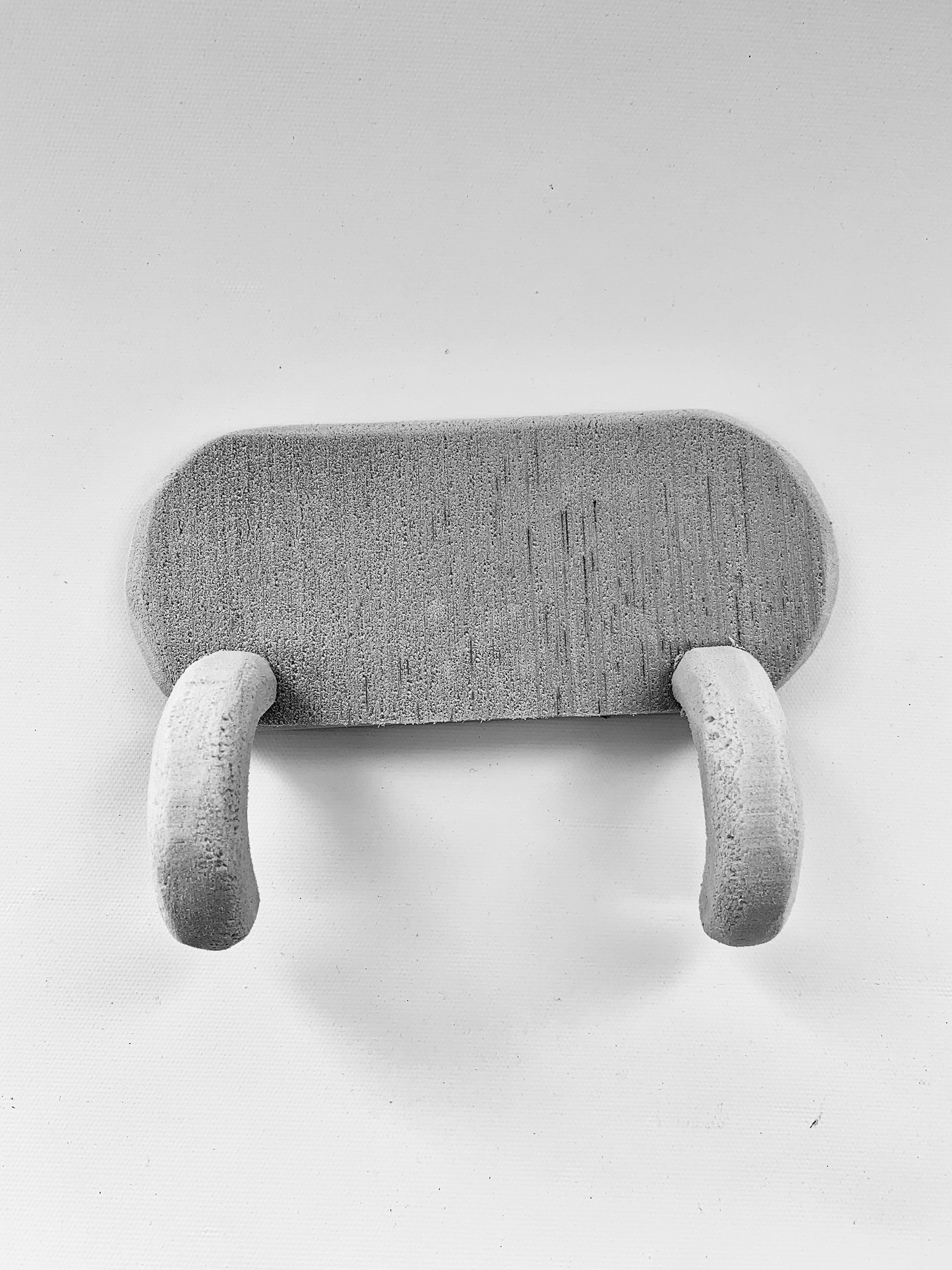

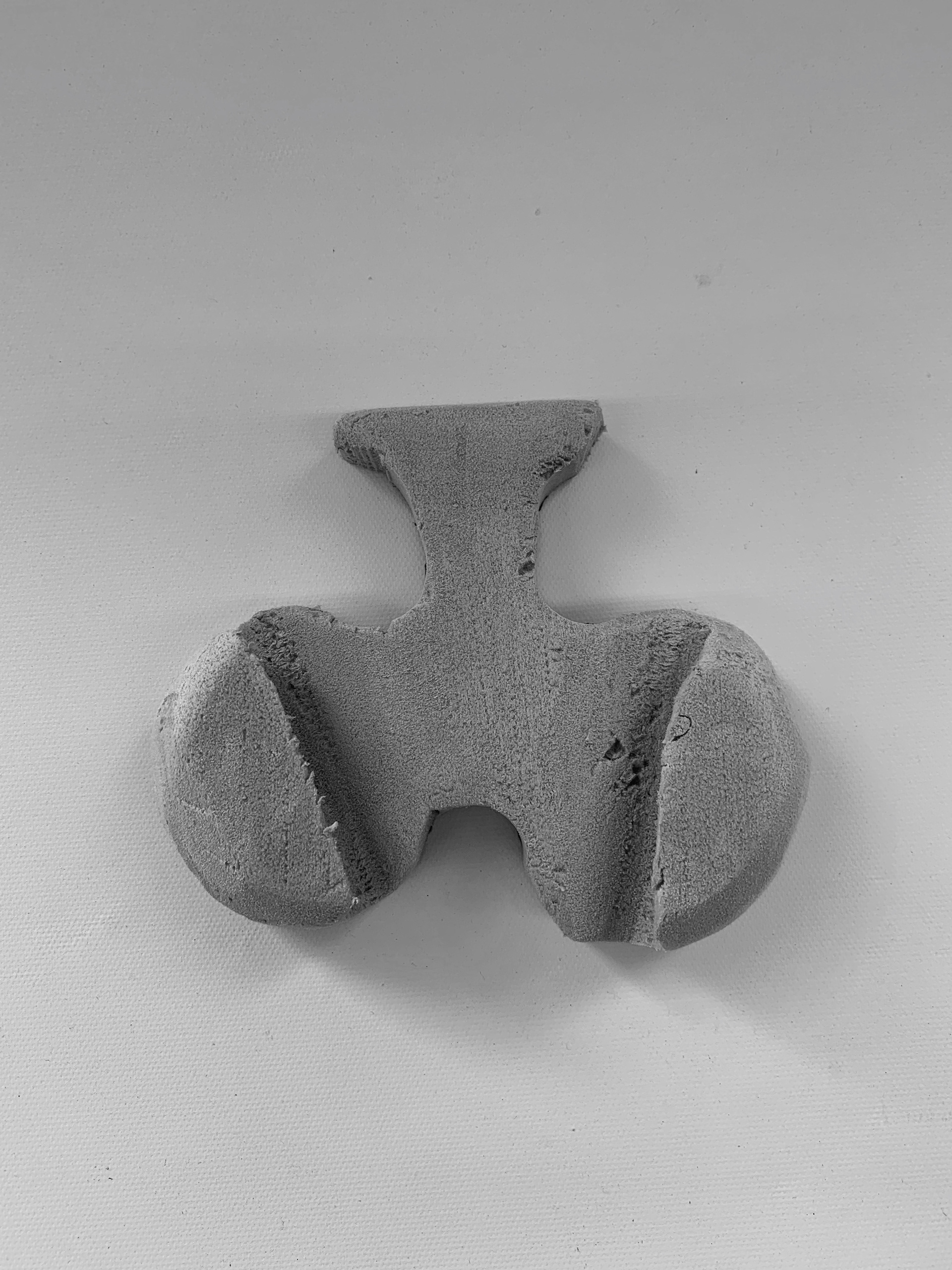

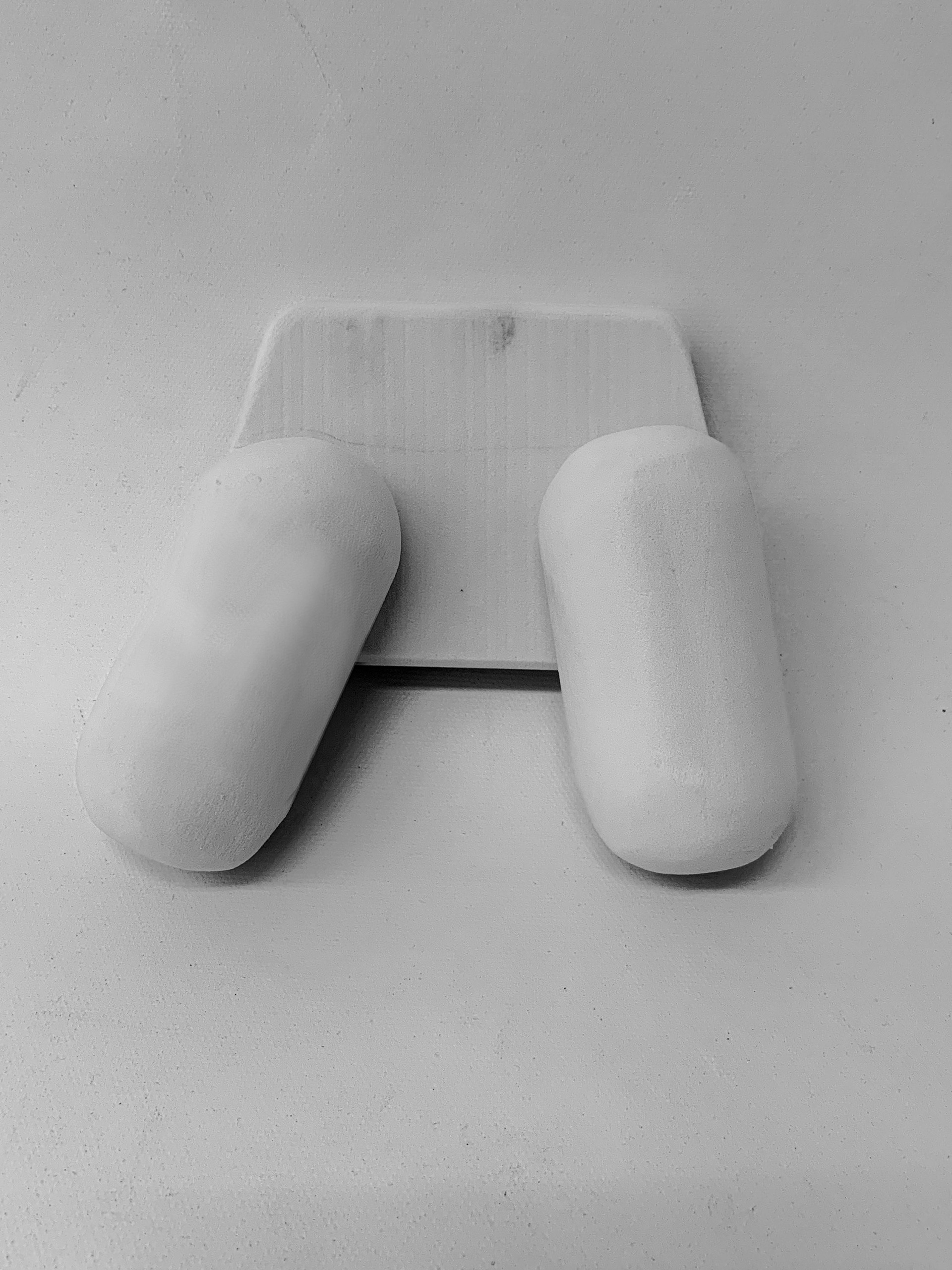

1st Prototype Feedback Refined Prototype
The distance between two handles had to be further away for better contact with phone game controls on screen
Two spheres were too big in size and handles were slippery, needing a more ergonomic approach by adding a curve to both handles
The main body was designed be long for the purpose of being a secondary handle, however, did not function as expected. Therefore it was an unnecessary part of the product.

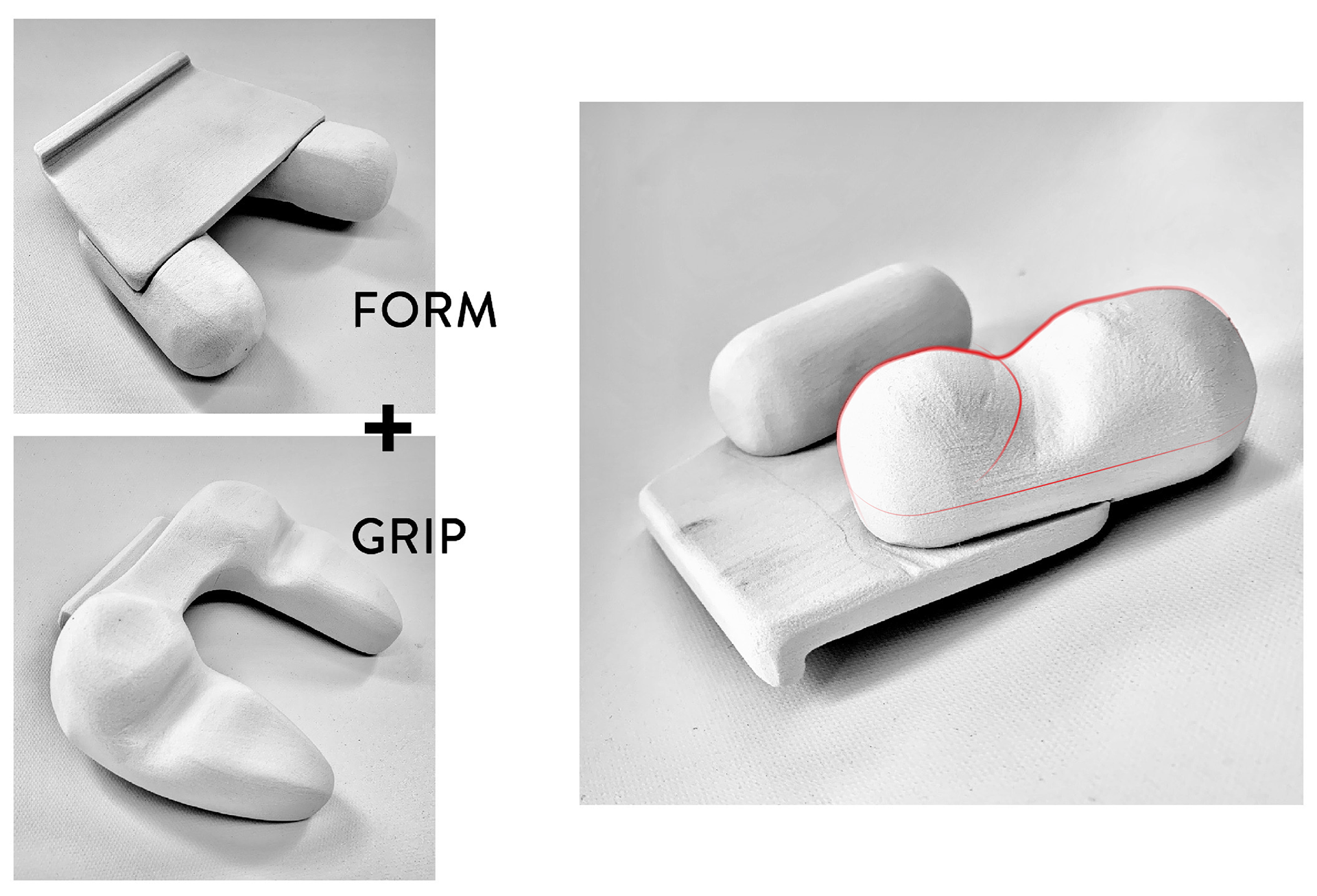

FINAL REFINEMENT

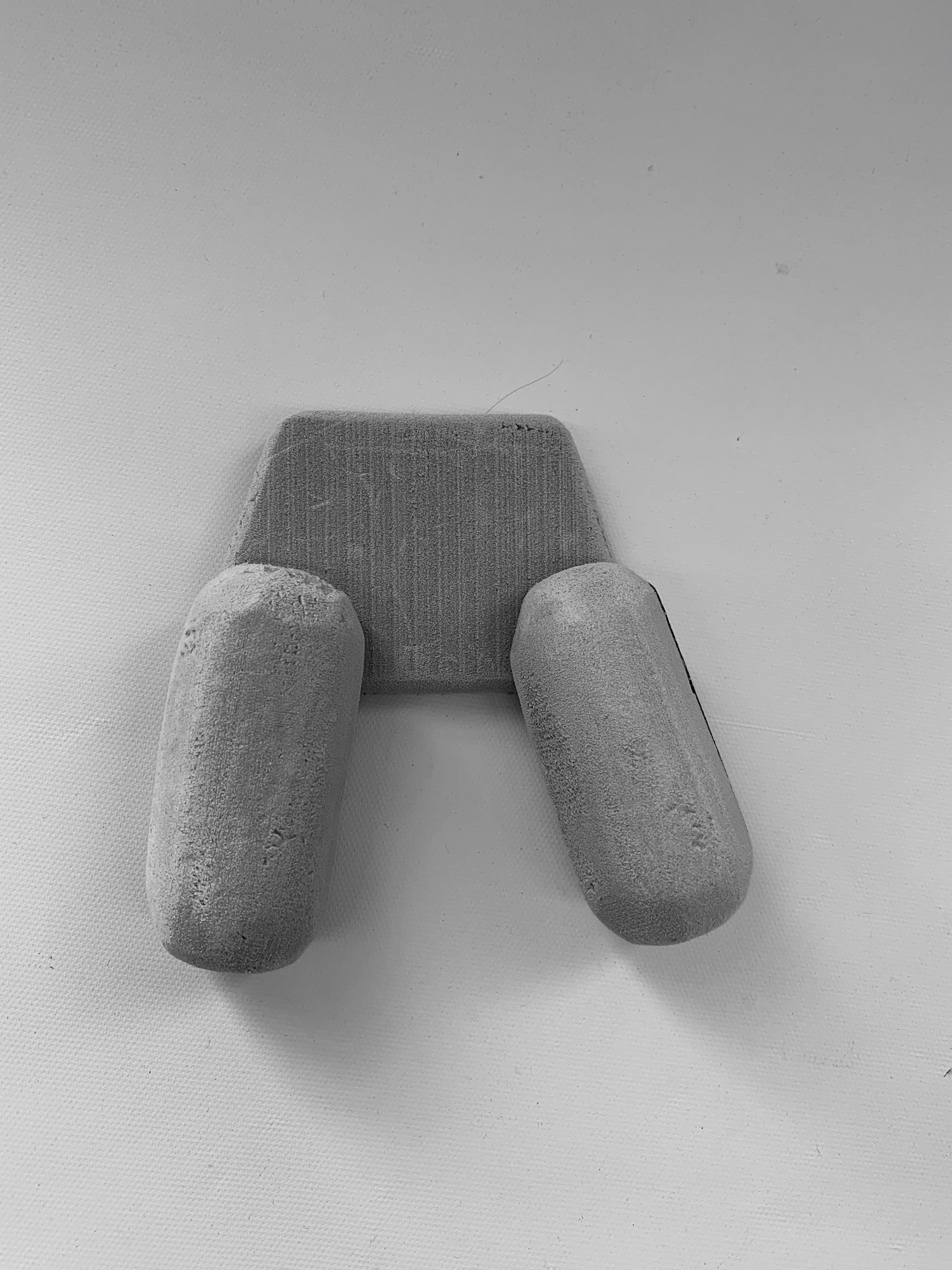

From the user feedback, two features: the simplicity of form of the first prototype and the ergonomic grip of the second prototype were combined to finalize the design.

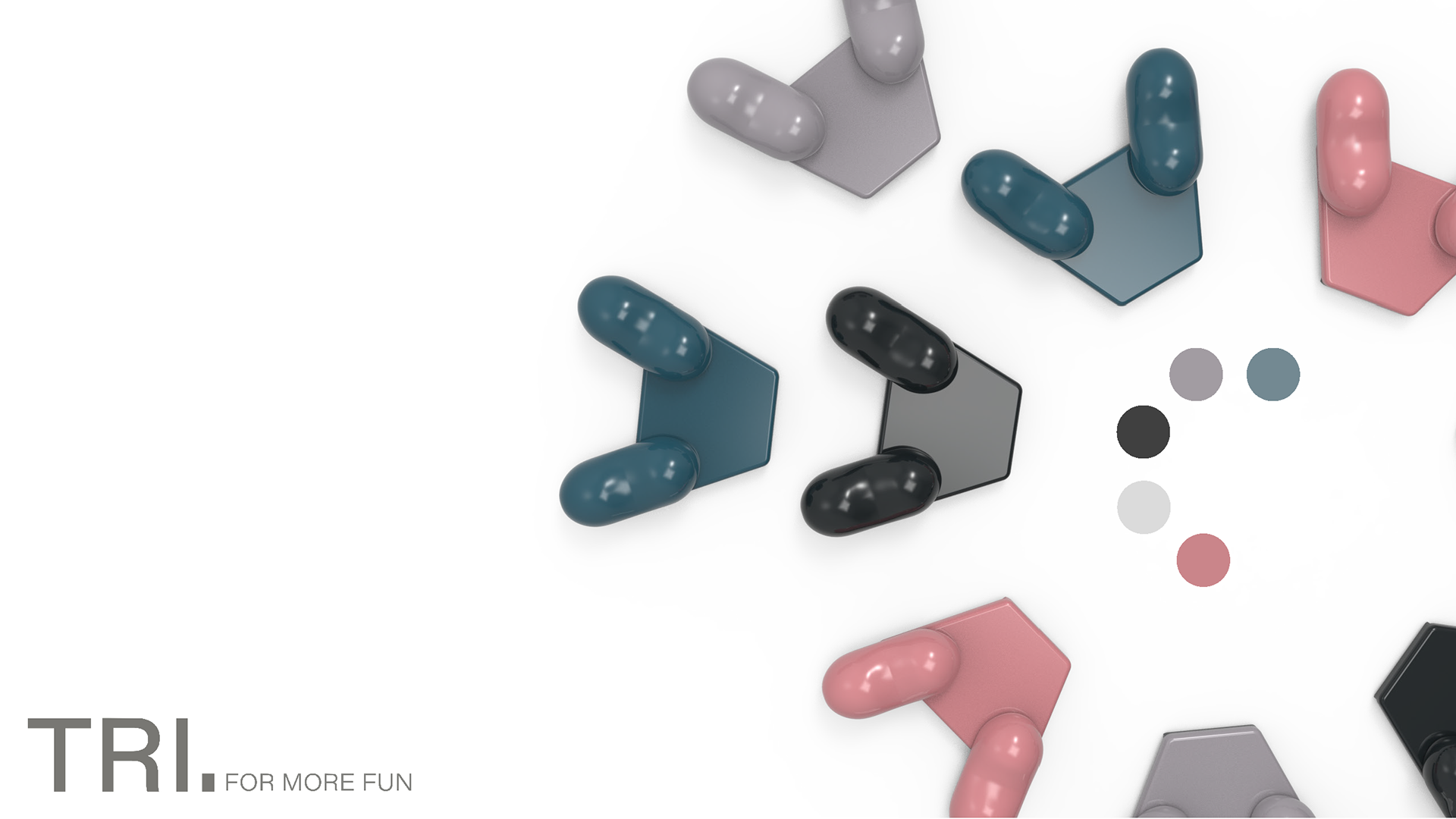

3D RENDERING

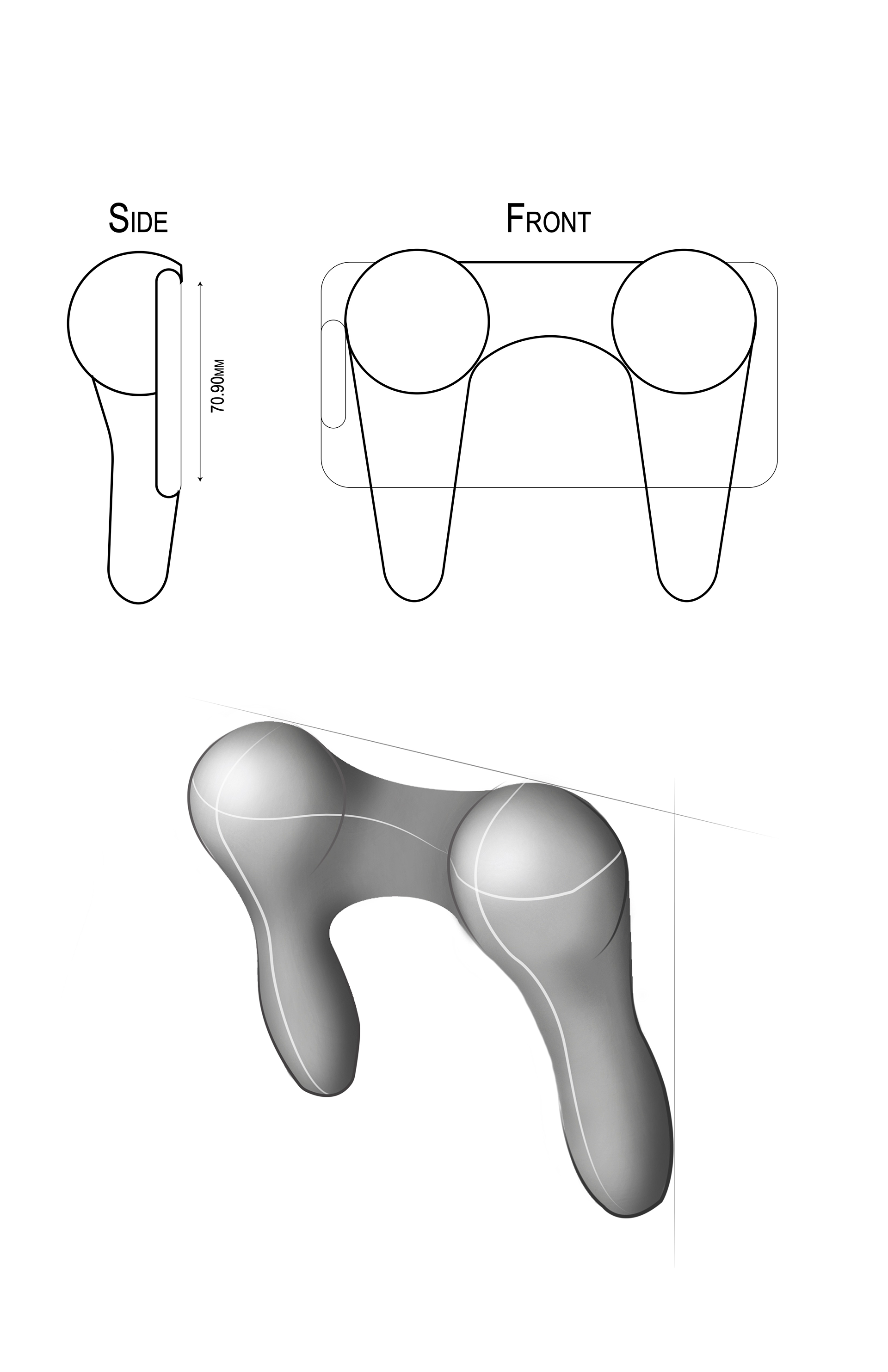

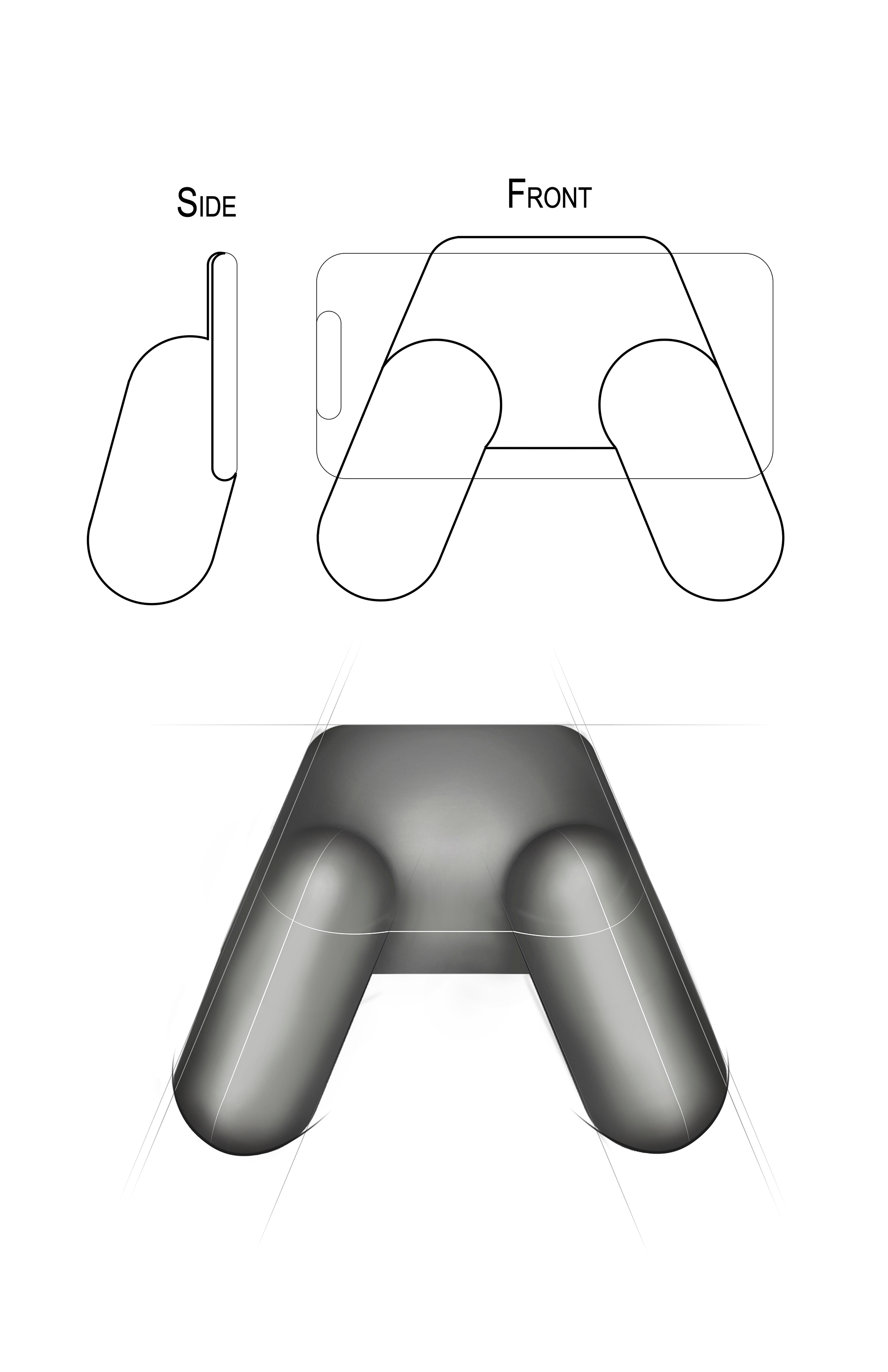

VISUALIZATION OF FINAL DESIGN & MEASUREMENTS

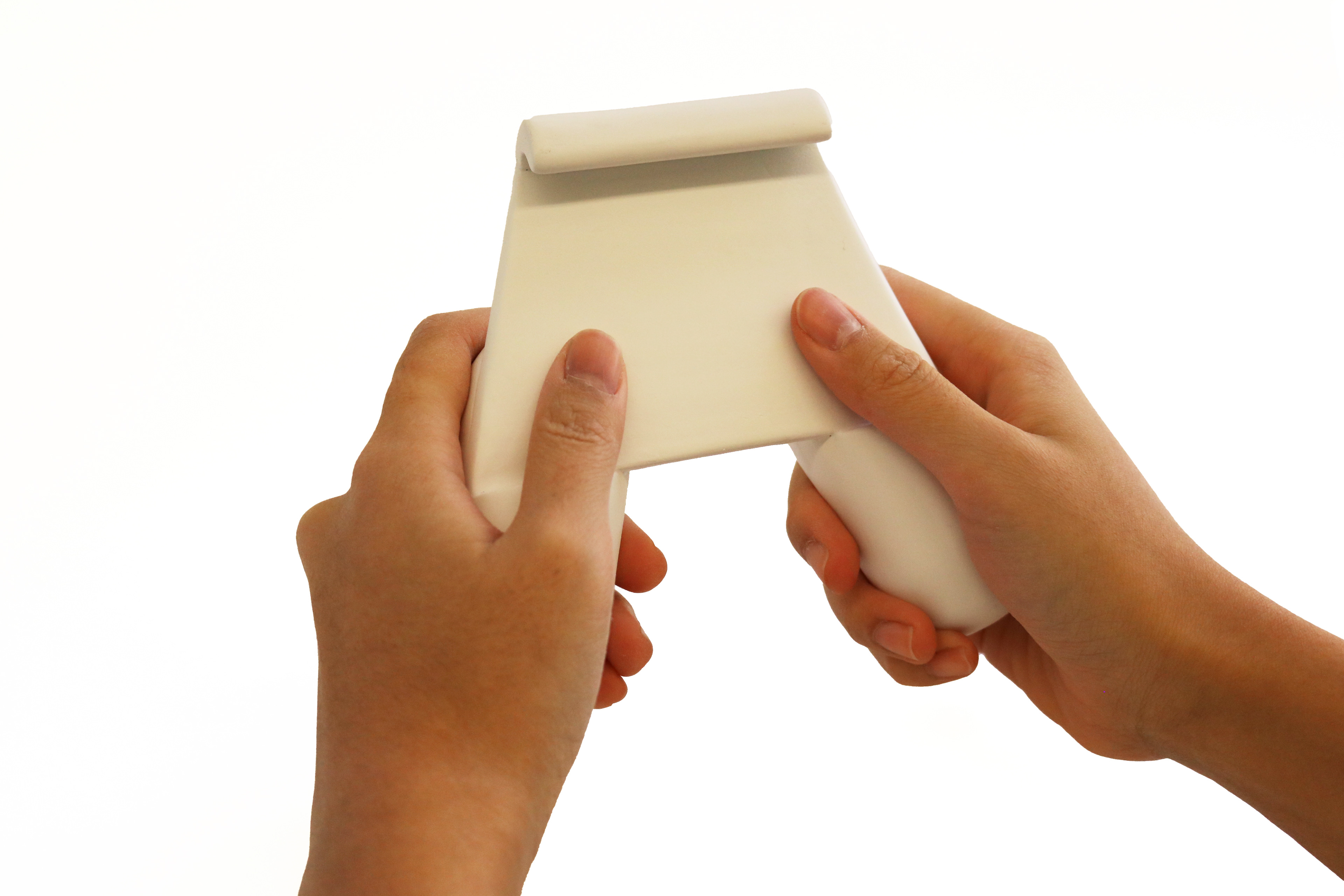

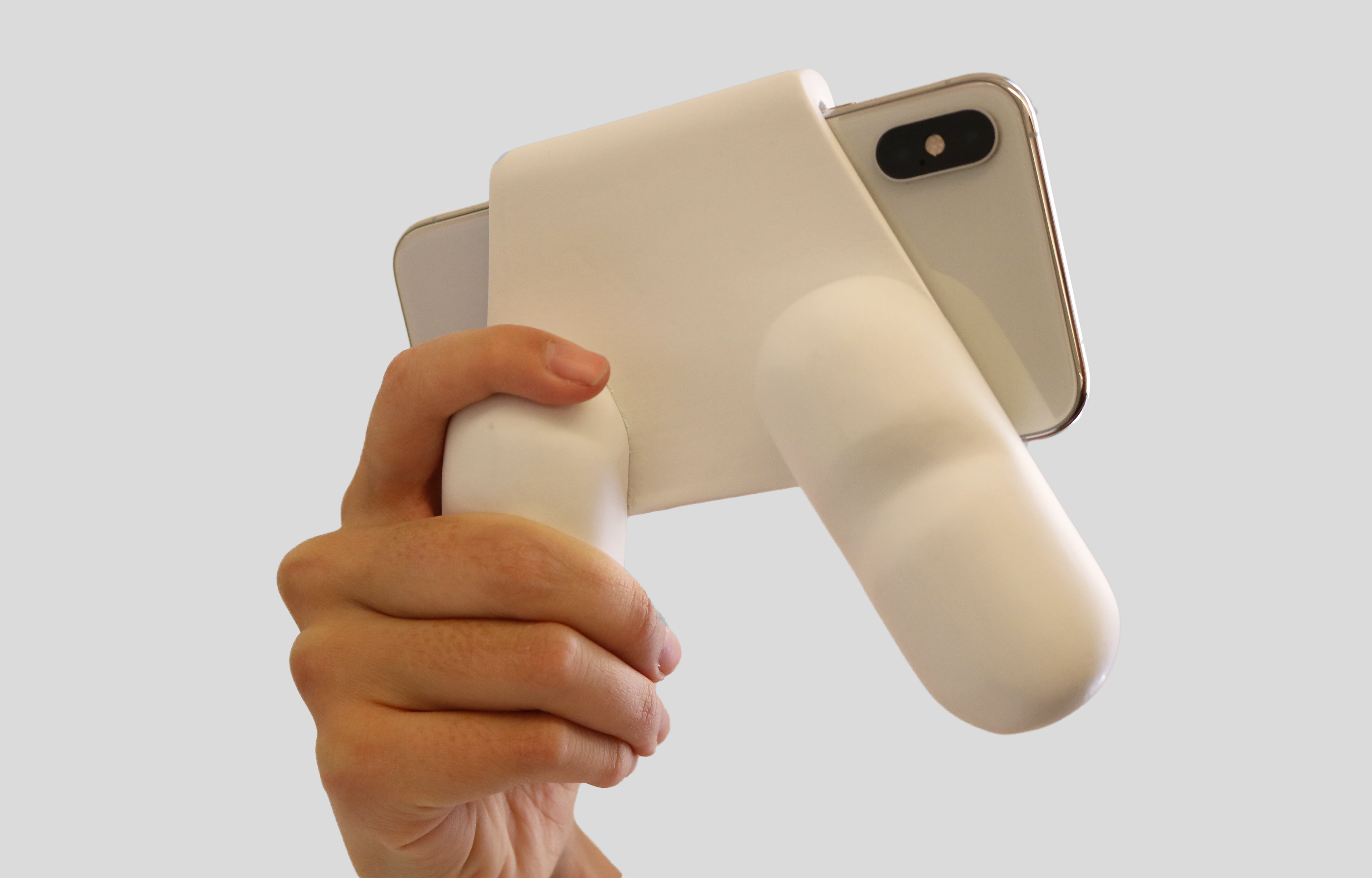

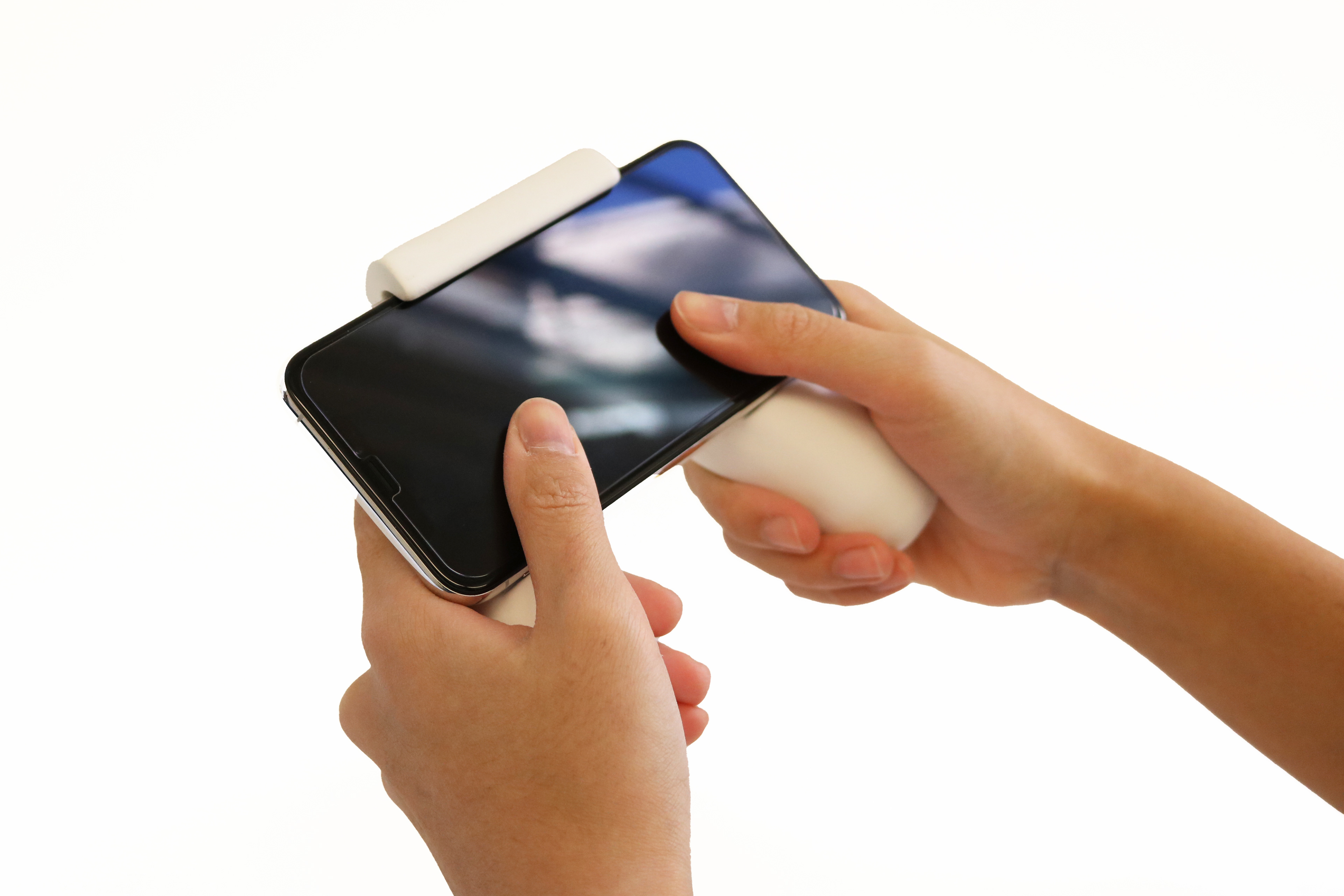

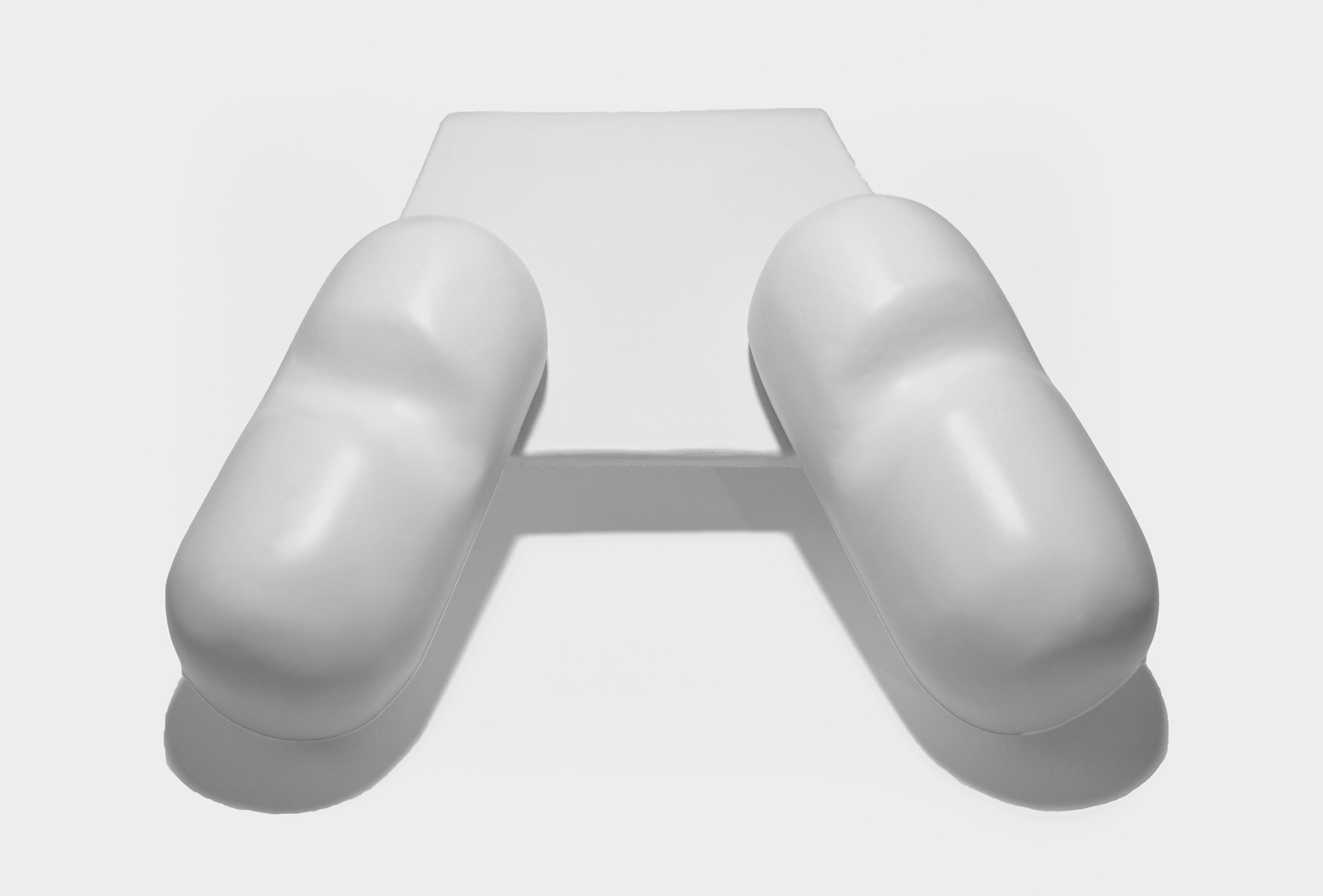

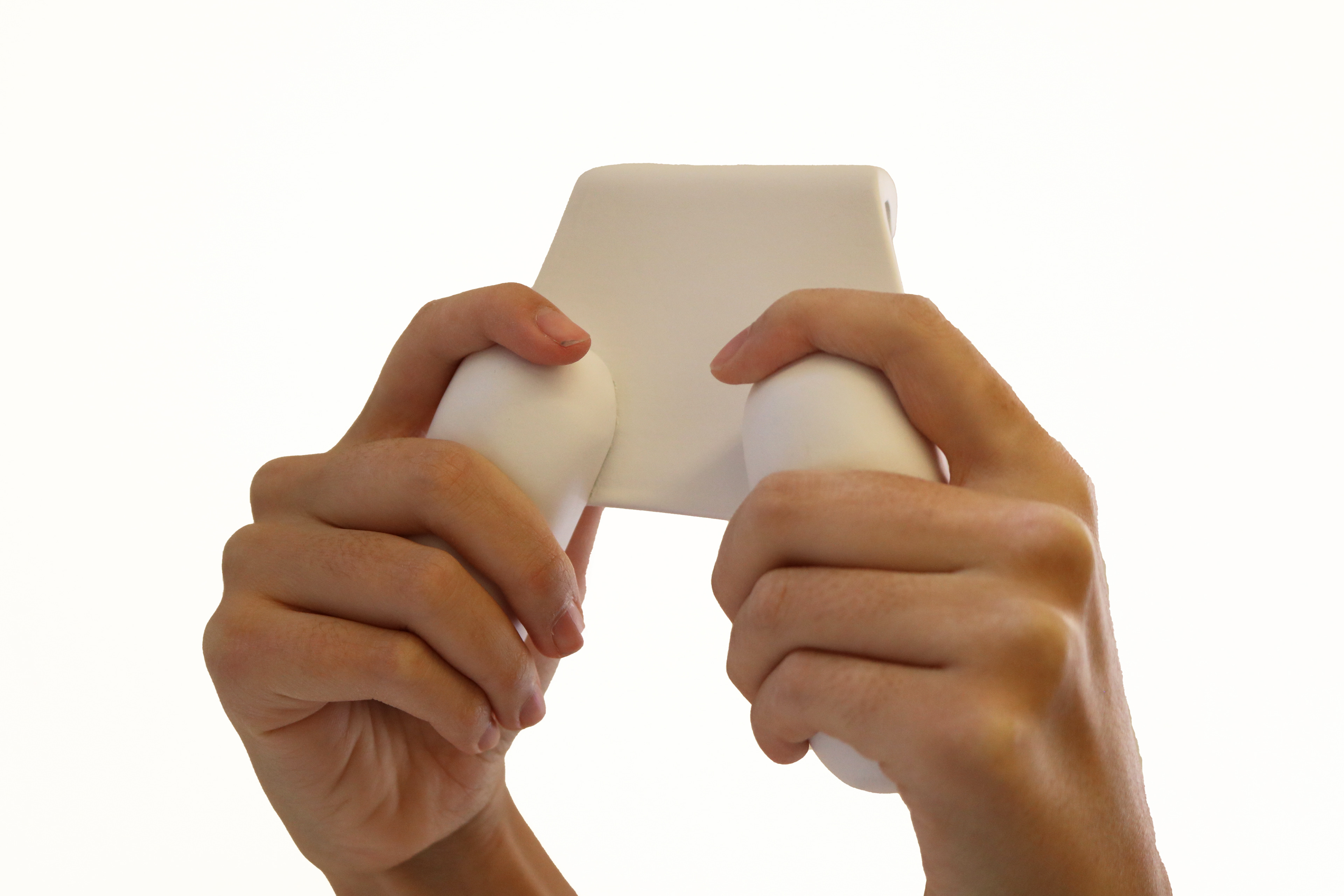

FINAL PHYSICAL PROTOTYPE (FOAM_SPRAY PAINT)
